GBAHD Shield DIY Kits

£29.99£125.99 £24.99 excl. VAT

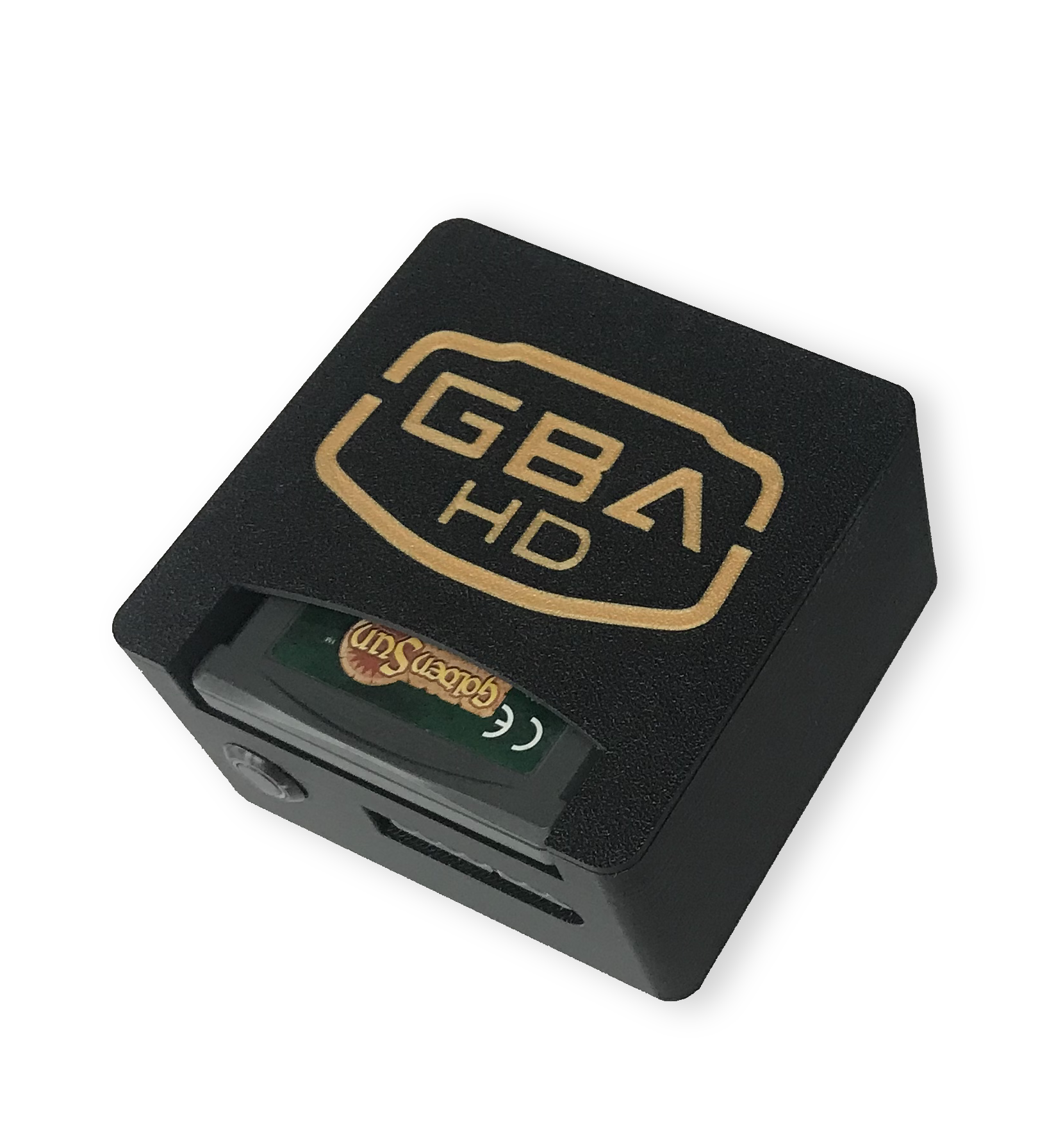

Consolize your Gameboy Advance! The GBAHD Shield is an addon board for the GBAHD project which allows you to turn your handheld Gameboy Advance OG or SP into a console & play your games in crisp 720p/1080p on modern displays!

Features:

  • Interfaces the GBA console motherboard to the Spartan ESP32 FPGA board via the GBAHD shield & breakout board for a clean setup.
  • Bluetooth controller support or wired via SNES controller port.
  • Next to zero input lag.
  • In-game reset (IGR) via controller.

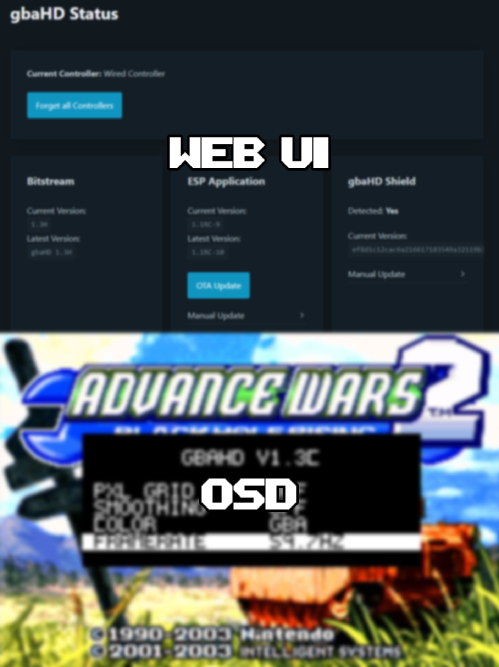

  • On-screen display (OSD): Pixel grid,  smoothing filters, framerate & colour options.
  • WebUI for additional controller settings, 720p/1080p bitstream selection & firmware updates via web browser.

Please note: The GBAHD project is still in development and compatibility with every modern display is not guaranteed. We stock the latest shield revision. All kits will be shipped with the latest shield firmware from time of dispatch.

Description

What is included with each option?

GBAHD Shield DIY Kit: (£24.99 exc. VAT, £29.99 incl. VAT)

  • x1 GBAHD shield board along with breakout board, FFC cables & pin-headers that are required for either a GBA OG or SP build.
  • By purchasing this option, you will need to acquire the following yourself: x1 Gameboy Advance OG or SP mainboard, x1 GBAHD case, buttons and fasteners, x1 Spartan Edge Accelerator FPGA board plus x1 micro SD card (optional).

GBAHD Shield DIY Kit & Spartan FPGA board: (£64.99 exc. VAT, £77.99 incl. VAT)

  • x1 GBAHD shield board DIY kit for either a GBA OG or SP build.
  • x1 Spartan Edge Accelerator FPGA Board.
  • By purchasing this option, you will need to acquire the following yourself: x1 Gameboy Advance OG or SP mainboard, x1 GBAHD case, buttons and fasteners board plus x1 micro SD card (optional).

GBAHD Shield DIY Kit & GBAHD case: (£64.99 exc. VAT, £77.99 incl. VAT)

  • x1 GBAHD shield board DIY kit for either a GBA OG or SP build.

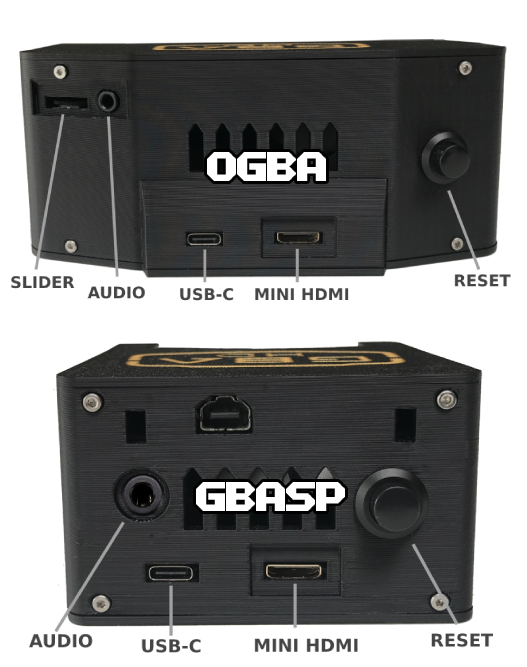

  • x1 GBAHD case for either the GBA OG or SP plus 3M brand feet. Includes fasteners along with the required power, reset and audio jack.
  • By purchasing this option, you will need to acquire the following yourself: x1 Gameboy Advance OG or SP mainboard, x1 Spartan Edge Accelerator FPGA board plus x1 micro SD card (optional).

GBAHD Shield DIY Kit, GBAHD case & Spartan FPGA board: (£104.99 exc. VAT, £125.99 incl. VAT)

  • x1 GBAHD shield board DIY kit for either a GBA OG or SP build.
  • x1 GBAHD case for either the GBA OG or SP plus 3M brand feet. Includes fasteners along with the required power, reset and audio jack.
  • x1 Spartan Edge Accelerator FPGA Board.
  • By purchasing this option, you will only need to acquire x1 Gameboy Advance OG or SP mainboard plus x1 micro SD card (optional).

Which kit should I go for?

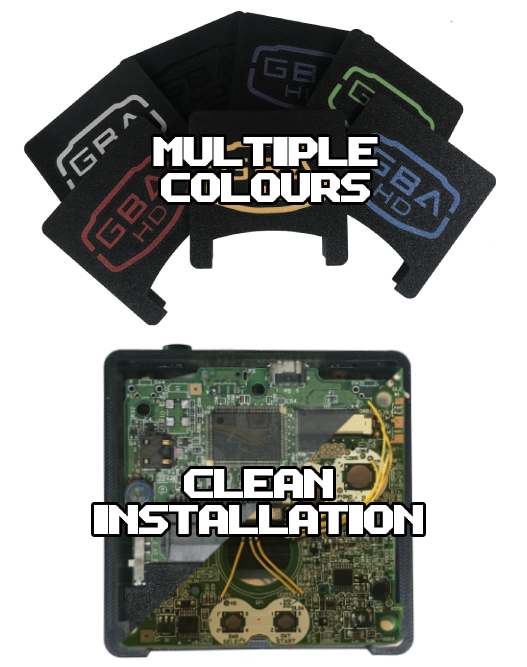

The GBAHD shield DIY kit is for those who wish to 3D print their own case or source one elsewhere. The GBAHD shield DIY kit plus case is for customers who would like us to supply the case. All case colours are a black base with the secondary colour applied only to the GBAHD logo.

If you wish to print your own case, the .stl files by john3d can be found here for GBA OG and here for GBA SP.

Installation & setup wiki here: https://github.com/gbaHD/GBAHD-Shield/wiki

Please note: By purchasing this kit, please understand that it is DIY & for advanced installers only. Whilst we’re happy to offer support with any install questions, we cannot offer one-to-one guidance through the install process! Please see instructions on the GBAHD Shield above.

Huge shoutout to Zwenergy, Mancloud, bbsan2k, Jotheripper/john3d, kinox51 & Sanchezand for their contributions towards the GBAHD project!

Additional information

Type

gbaHD Shield DIY Kit for OGBA, gbaHD Shield DIY Kit for GBASP

Include Case

Yes, No

Colour

Black, Black/Silver, Black/Gold, Black/Galaxy Red, Black/Lime Green, Black/Galaxy Blue, Black/Galaxy Purple, Crystal

Include Spartan FPGA Board

Yes, No
