Description

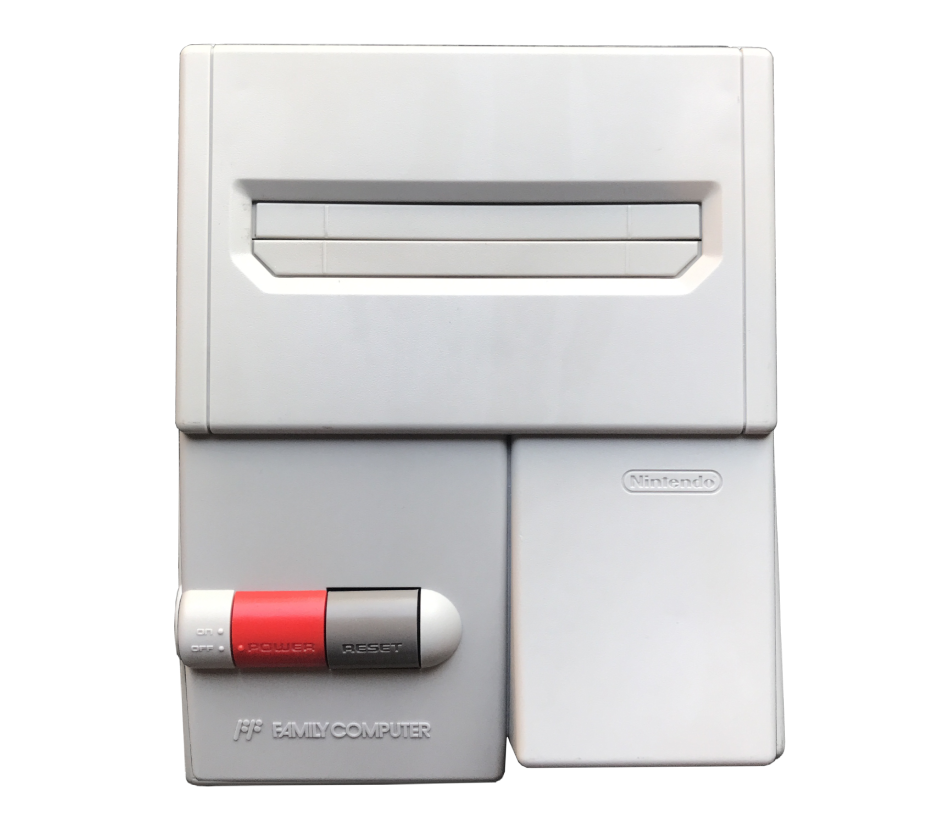

Pictures are of the actual console you will receive. (Minus the thumbnail which is our stock photo for all AV Famicom consoles).
The console is overall in good condition with general wear as expected. It has been cleaned both internally and externally. Multiout & cartridge slot has also been reflowed. The original port cover and sticker on the side are still intact.
Only the console itself is included, no cables or controllers. You will need an AV Famicom PSU & SNES NTSC CSYNC cable. We can supply the SNES RGB SCART cable. If you wish to acquire a cable elsewhere, the console is configured for use with a SNES NTSC CSYNC SCART cable with 470R resistor on sync.
For the PSU, we recommend either an original or Triad PSU (click here). Please reach out if you need advice.
IGR & Palette selection controls
Start+Select+Left – Decrement palette counter.
Start+Select+Right – Increment palette counter.
Start+Select+Left (hold for 2 seconds) – Disable/enable NESRGB board.
Start+Select+Right (hold for 2 seconds) – Set to palette 1.
Start+Select+A+B – In game reset.
Available palettes
Digital Prime (from FirebrandX)
Nestopia_YUV – Looks most like a PAL console.
Sony CXA – Very colourful palette of unknown origin.
Smooth V2 (from FirebrandX) – Lower colour saturation.
FCEUX – Another colourful palette, taken from the FCEUX emulator.
Wavebeam
Please feel free to email us if you have any further questions.
We offer a 12-month guarantee for this product when purchased via our website retroupgrades.co.uk
