Description
PRE-ORDER ROUND 1: Completed – all shipped.
PRE-ORDER ROUND 2: Completed – all shipped.
PRE-ORDER ROUND 3: Completed – all shipped.
Features:

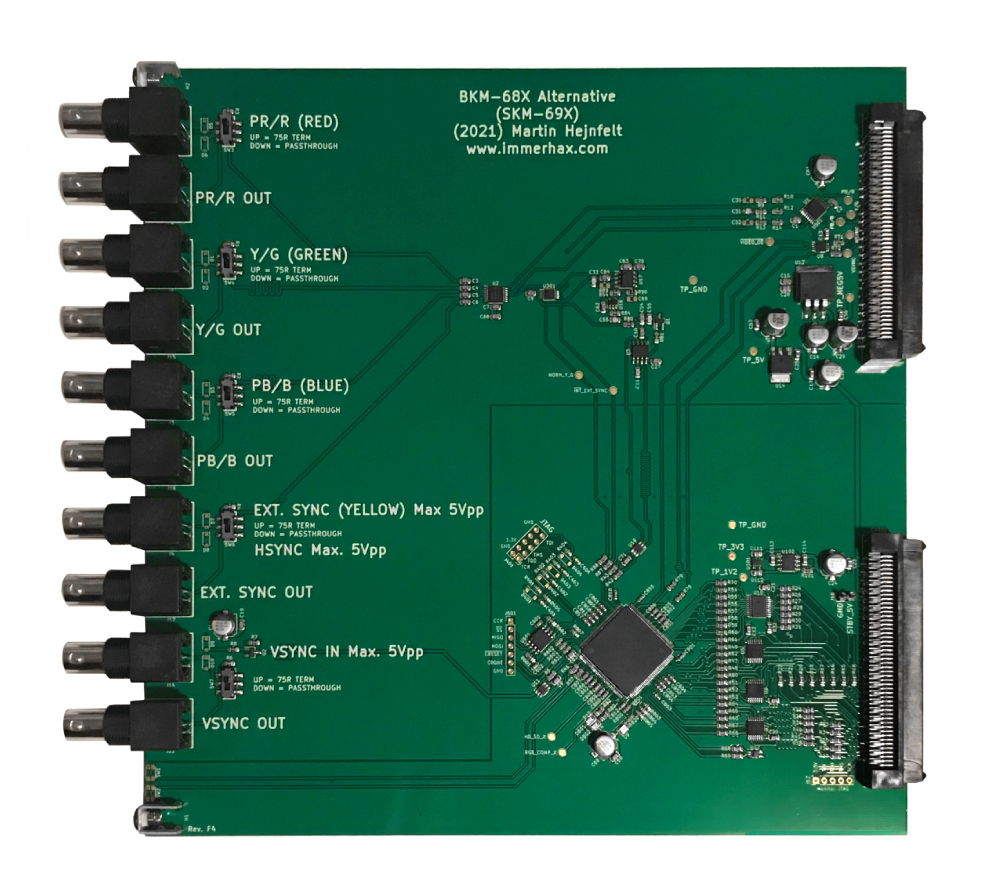

- Use RGBs/RGBHV/YPbPr with your Sony BVM A series monitor.
- Versus the the original BKM-68X, this card has severely better sync handling seemingly. For a full list of consoles that have been tested to sync fine, click here.
- 75 Ohm termination can be selectable via switches, which either terminates, or passthroughs (in that case external terminators are needed, unless signal is actually passed through to a terminating monitor).
- Passes the signal straight through to the monitor as it originally is (buffered and level conditioned).
Specifications:
- Approx. Dimensions = 270 mm x 240 mm.
- Black PCB with ENIG (gold immersion) finish.
- Latest revision.
- Includes silver 3D printed bracket and high quality mounting fasteners sourced locally in the UK.
Compatible with the following monitors:
- BVM-A14F5M/U/A
- BVM-A20F1M/U/A
- BVM-A24E1WM/U/A
- BVM-A32E1WM/U/A
The 68X is compatible with all A series monitors from all regions. Therefore, technically you may ignore the M/U/A suffix that is at the end of each model number shown above.
As with other BVM monitors, audio is to be routed externally.
Huge shoutout to Martin Hejnfelt for making this possible. Please feel free to follow him on Twitter: https://twitter.com/martinhejnfelt and follow his projects on Github: https://github.com/skumlos
