N64 Advanced Universal RGB Kit
N64 Advanced Universal RGB Kit - Image 2
N64 Advanced Universal RGB Kit - Image 3
N64 Advanced Universal RGB Kit - Image 4
N64 Advanced Universal RGB Kit - Image 5

N64 Advanced Universal RGB Kit

Original price was: £89.99.Current price is: £83.99. £69.99 excl. VAT

The N64 Advanced is a high end digital to analog N64RGB video mod for the Nintendo 64, offering a far more advanced feature set vs. CPLD based mods. Output crystal clear 240p to 720p video with one of the most capable analog video solutions available for the N64!

Features:

  • FPGA based digital to analog video solution.

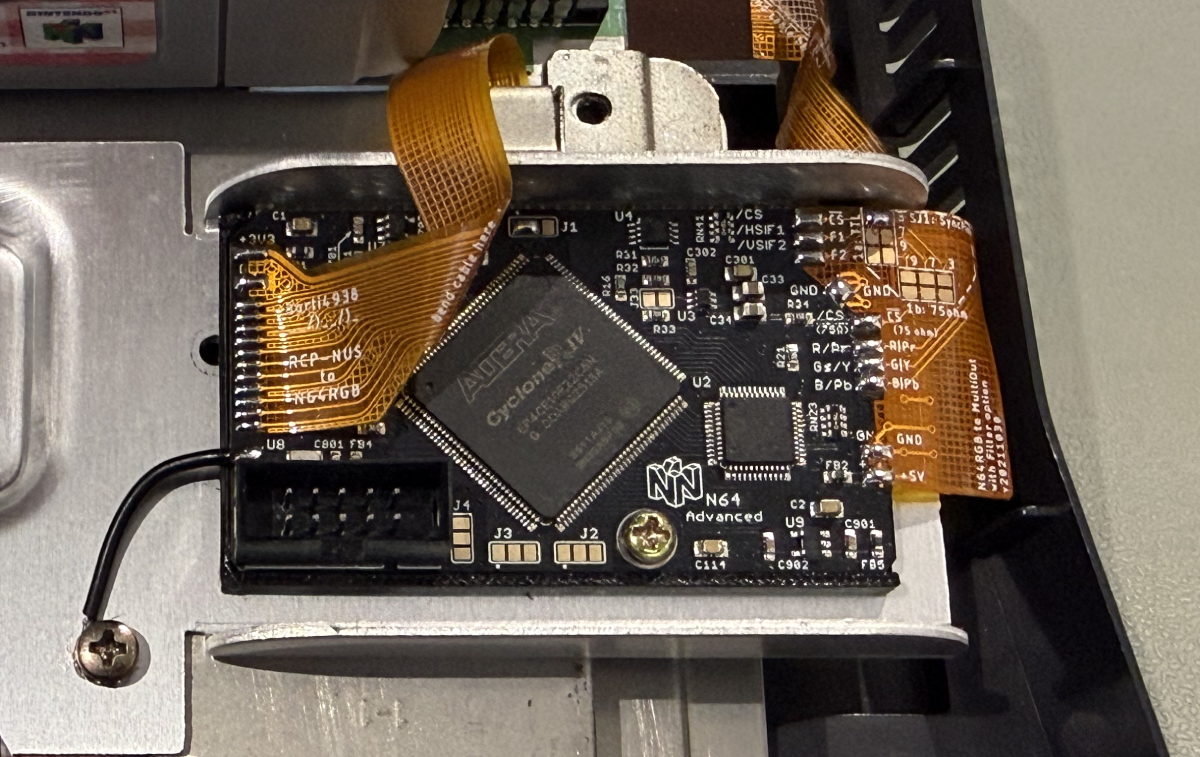

  • Utilizes flex PCBs resulting in a cleaner installation & time-saving vs. wired methods of the past.

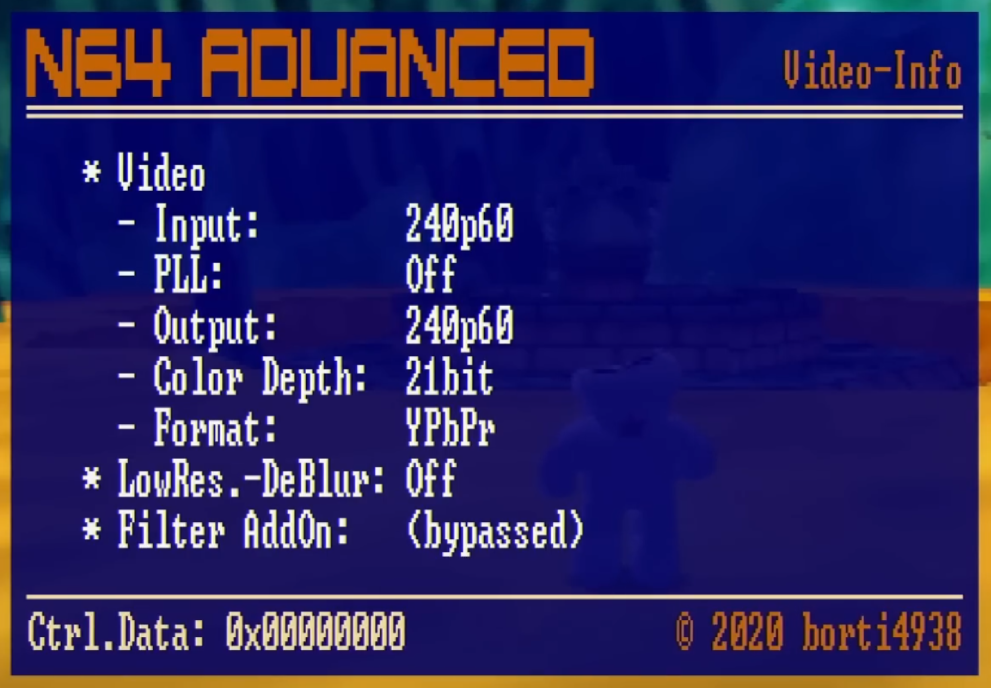

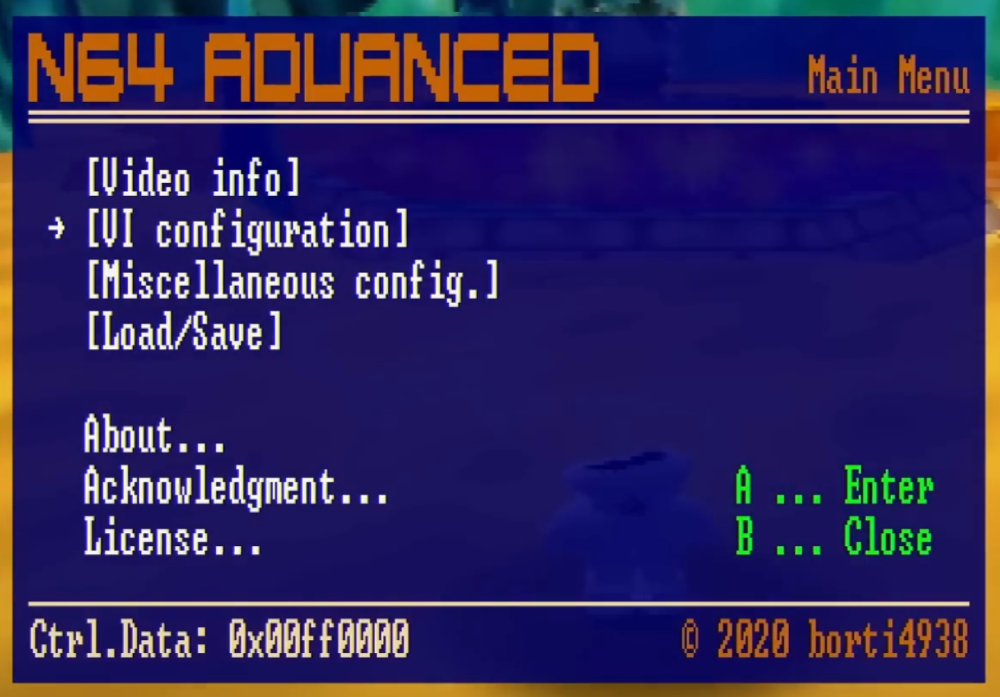

  • OSD – On screen display menu for easy configuration.

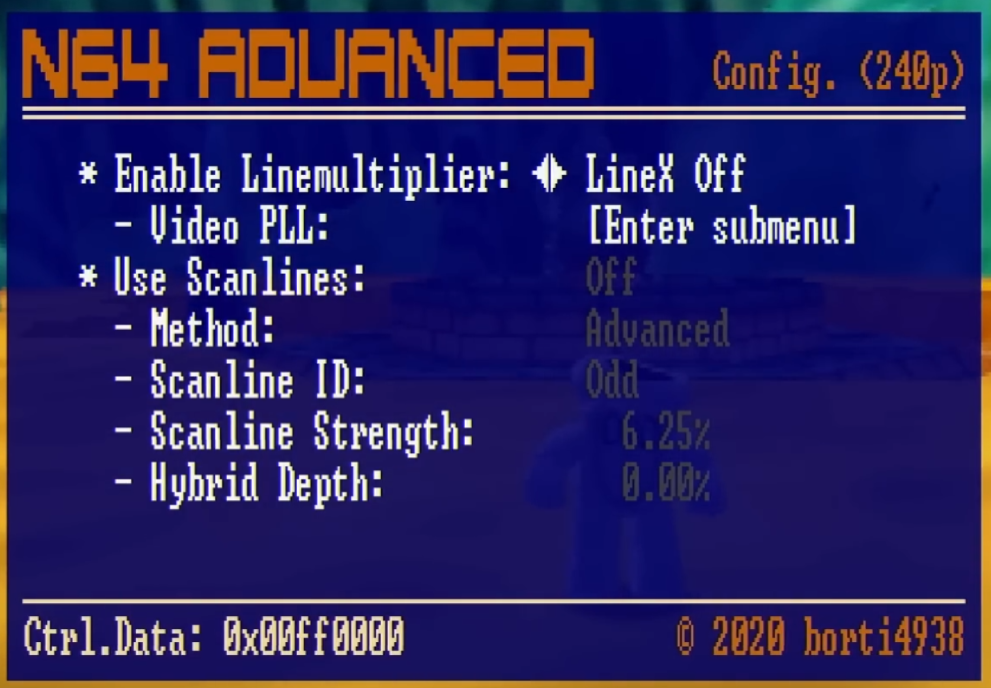

  • Line doubling 31khz+ (480p/720p), scanline, dejitter and deinterlace features.
  • VI-DeBlur, 16 bit mode and in-game reset (IGR) switchable via the N64 controller.
  • Supports multiple SCART/Component/VGA cable types with the possibility to output CSYNC, sync on luma, sync over composite, SoG, YPbPr, RGBHV etc.
  • Low-pass filter toggle.
  • Professionally assembled using high-quality components from JP & USA. Brands such as Nichicon, Vishay, Panasonic.
  • Premium ENIG (gold immersion) finish.
  • Pairs well with any CRT setup (especially multi-format CRT’s) or any scaler OSSC, RT5X, etc.
  • Compatible with both PAL and NTSC consoles and covers all N64 motherboard revisions.

Launch offer available for a limited time! Ends Friday, 7th August at 11:59 PM.

In stock

SKU: ADV-MOD-N64 Categories: , Tags: , , , , , , , , , , ,

Description

Install instructions: click here.

Supports multiple sync types and cable configurations. If you follow our guide exactly, we recommend using an NTSC SNES cable wired for CSYNC with a 470 ohm resistor on sync.

PAL SNES RGB SCART cables compatibility: as per the installation guide, if you wish to use PAL SCART cables, you will need to replace ‘RN2’ on the flex PCB. We stock the required part, please click here.

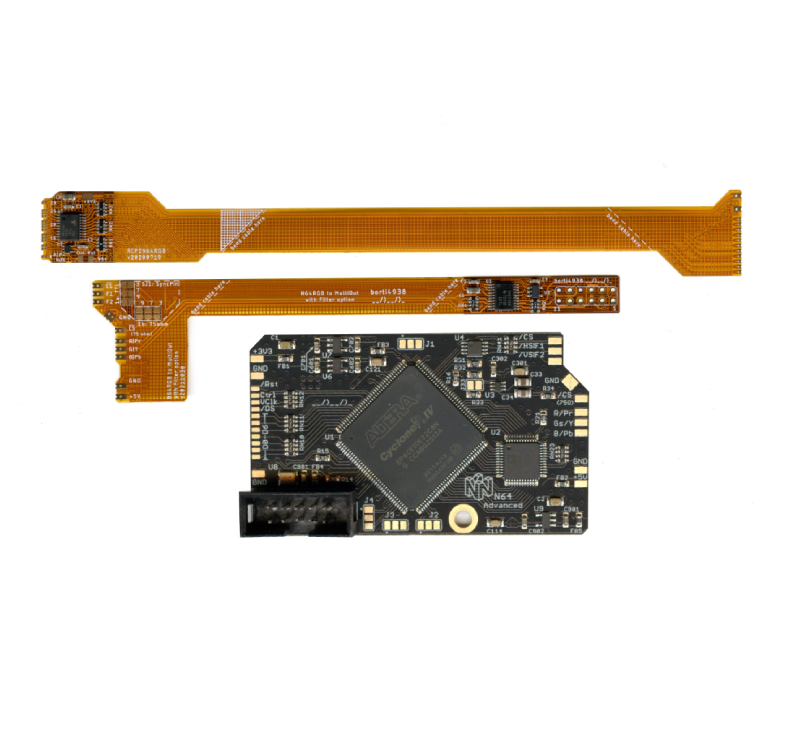

Includes: N64RGB Advanced board, two flex cables, high temperature rated 3D printed mounting bracket and fasteners.

Hardware & software are to the latest revision.

User information guide & full features overview can be found here. Includes button combinations and full overview/navigation of each OSD menu setting.

*Difficulty level is the opinion of Retro Upgrades. This kit is sold as DIY and requires fine pitch soldering skills for the flex cable to RCP-NUS chip of the N64. Please review the documentation and make sure you are confident in installing this kit prior to purchasing!
