N64RGB V3 FLEX Universal RGB Kit

£39.59 £32.99 excl. VAT

The N64RGB V3 FLEX mod kit is compatible with both PAL and NTSC consoles and covers all N64 motherboard revisions. Output crystal clear RGB with the latest analog video kit for the Nintendo 64!

Features:

  • CPLD based, digital to analog video solution.

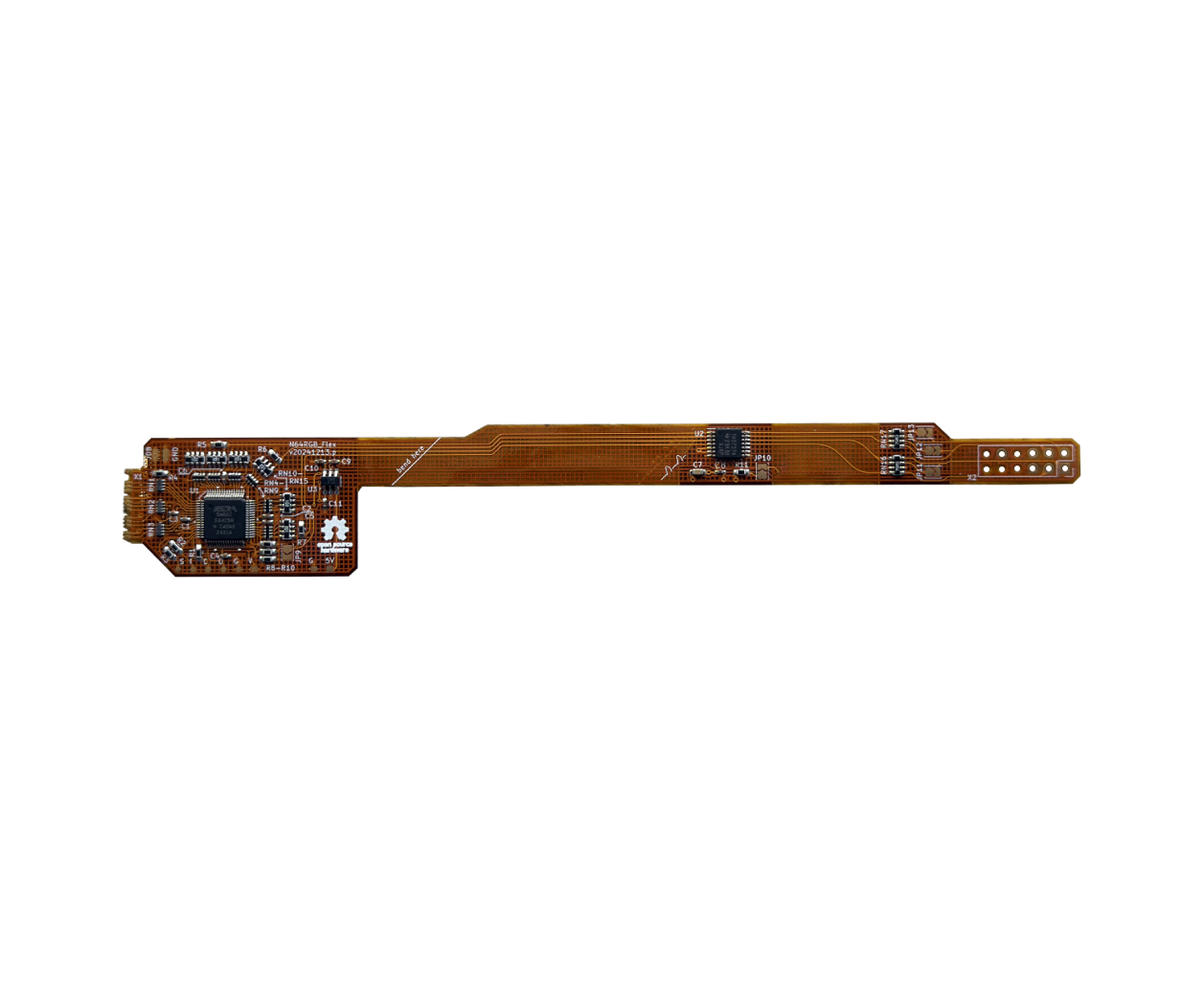

  • Fully custom flex PCB resulting in a cleaner installation & time-saving vs. the wired methods of the past.
  • Super fast installation time (provided the installer has experience with fine pitch soldering).
  • VI-DeBlur switch which mounts to the bottom shell vents. Only two wires required for the deblur switch.
  • Supports multiple SCART cable types with the possibility to output either CSYNC or sync on luma.
  • Professionally assembled using high-quality components from JP & USA. Brands such as Nichicon, Vishay, Panasonic.
  • Premium ENIG (gold immersion) finish.

Install instructions: click here.

Compatible with all PAL and NTSC N64 consoles.

In stock

SKU: 3.0-MOD-N64 Categories: , Tags: , , , , , , , , , , , ,

Description

Includes: N64RGB V3 FLEX PCB (fully assembled & pre-programmed), DeBlur switch plus wires and 3D printed mounting bracket.

PAL SNES RGB SCART cables compatibility: as per the installation guide, if you wish to use PAL SCART cables, you will need to set the jumpers appropriately on the flex PCB as per  the guide.

*Difficulty level is the opinion of Retro Upgrades. This kit is sold as DIY and requires fine pitch soldering skills for the flex cable to RCP-NUS chip of the N64. Please review the documentation and make sure you are confident in installing this kit prior to purchasing!

Thanks to Borti4938 and DragonsHoardGaming.
