Description
Specifications:
- Approx. Dimensions = 160 mm x 140 mm.

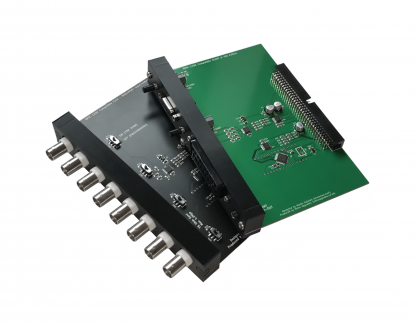

- BNC version – Connector A = x4 BNC input (R, G, B + S), Connector B = x4 BNC output (R, G, B + S).
- VGA version – Connector A = DE-15 (VGA) input, Connector B = SCART (RGB) input, Connector C = 3.5mm audio (SCART audio) output.
- 16/06/2024: Bracket colour is currently black.
Compatible with the following monitors:
- BVM-D14H1E
- BVM-D14H5E
- BVM-D9H1E
- BVM-D9H5E
- PVM-20L5
- PVM-20L4
- PVM-20L2
- PVM-14L5
- PVM-14L4
- PVM-14L3
- PVM-14L2
- PVM-9L3
- PVM-9L2
Most monitors will only allow for one optional input card *check with your manual. As with the original cards, please leave the other slot empty whilst one is in use. If you require a blank slot cover for the second slot, you can also find them on our website.
Audio can be connected to the optional slot (or RGB/YPbPr slot) audio on your monitor or routed externally to your amp/speakers.
Please note: The brackets will either be in silver or black depending on stock. If you have a specific colour requirement, please attach a message upon checkout or send us an email straight away.
Every card will be tested before it is dispatched.
For the BNC card, the BNC connectors are usually white but may be black depending on current stock.
Designed by Martin Hejnfelt @ immerhax.com & produced by Retro Upgrades!
