Sega Mega Drive/Genesis In-Game Reset

£8.99 £7.49 excl. VAT

A simple Sega Mega Drive/Genesis IGR (In-Game Reset) board which allows you to reset the console via the controller. A must-have addition for Everdrive users! Moreover, pair it up with a switchless region/DFO kit in order to switch region with the controller.

Features:

  • Reset your MD/Genesis console via the game controller.
  • Small footprint – can fit almost anywhere on the board.
  • Compatible with MD1/Genesis 1 and MD2/Genesis 2!
  • Compatible with both Borti4938 switchless region kit & The Real Phoenix switchless region/DFO kit.

Install instructions below.

Only 4 left in stock

SKU: IGR-MOD-MDX Categories: , Tags: , , , , , ,

Description

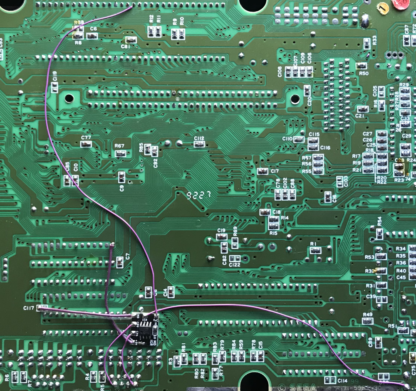

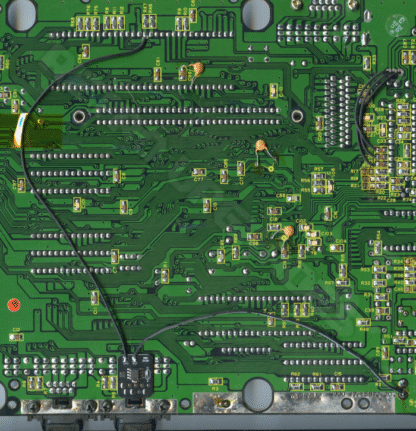

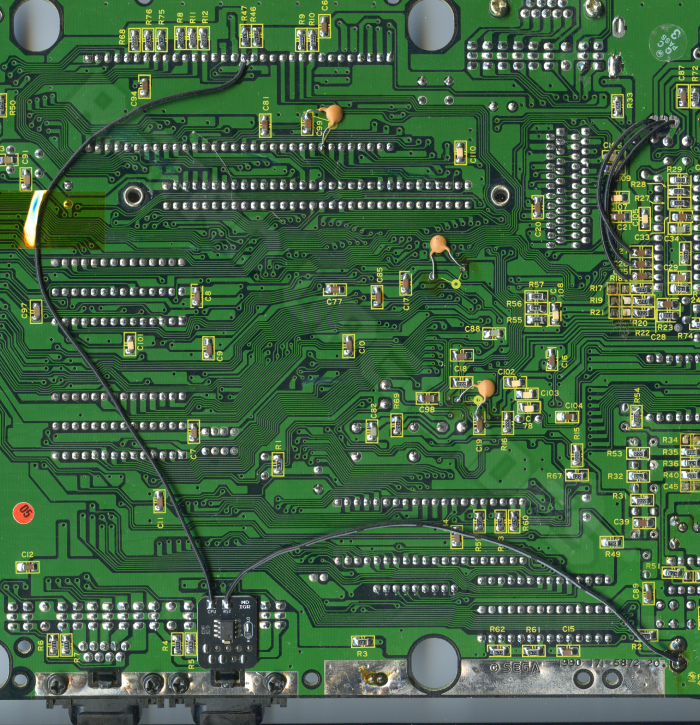

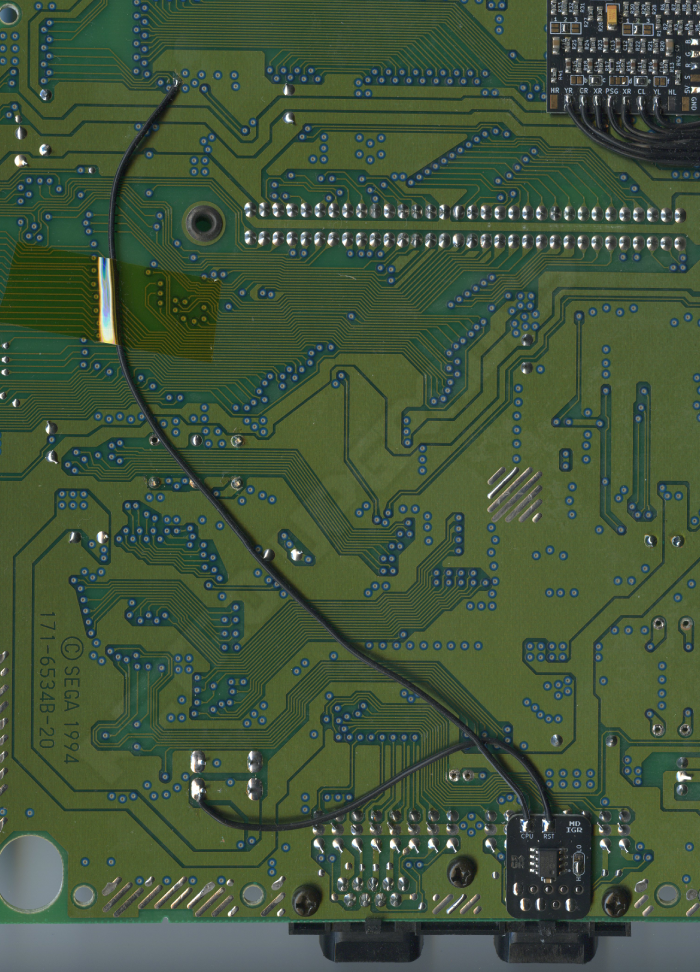

Install instructions in progress. Currently please refer to install pictures on this page.

*Difficulty level is the opinion of Retro Upgrades. This kit is sold as DIY and requires soldering skills, please review the documentation and make sure you are confident in installing this kit prior to purchasing!

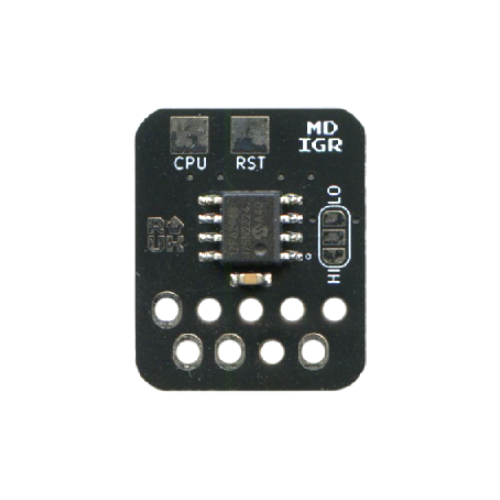

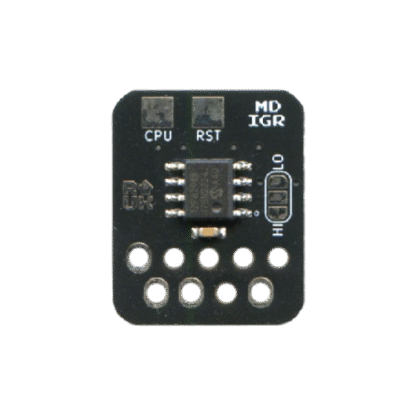

Jumper options:

Set to “LO”: Extended mode is switched off. Console is reset if START+A+B+C are held for 1.5 seconds at the controller pad.

Set to “HI”: Extended mode is switched on. Resets if the buttons START+A+B+C are held for 1.5s at the controller pad. The reset is then held as long as the button combination is held. This mode can be used if you have a switchless mod installed in your Mega Drive/Genesis to switch between the different region modes. Furthermore, the CPU is paused during that time so that the game will not run during this process.

Thanks to ArcadeTV for the initial IGR design which we based this kit upon. The kit also uses Borti4938’s IGR code.
