N64RGB V2.1 Universal RGB Kit

£53.99 £44.99 excl. VAT

The N64RGB V2.1 mod kit is compatible with both PAL and NTSC consoles and covers all N64 motherboard revisions! Output crystal clear RGB or YPbPr with the latest and best analog video kit for the Nintendo 64 on the market!

Features:

  • CPLD based, digital to analog video solution.
  • Utilizes flex PCBs resulting in a cleaner installation & time-saving vs. the wired methods of the past.
  • VI-DeBlur, 16 bit mode and in-game reset (IGR) switchable via the N64 controller.
  • Supports multiple SCART/Component cable types with the possibility to output CSYNC, sync on luma, sync over composite, SoG, YPbPr. etc.
  • Low-pass filter toggle.
  • Professionally assembled using high-quality components from JP & USA. Brands such as Nichicon, Vishay, Panasonic.
  • Premium ENIG (gold immersion) finish.

Install instructions: click here.

Compatible with all PAL and NTSC N64 consoles.

Out of stock

SKU: 2.1-MOD-N64 Categories: , Tags: , , , , , , , , , ,

Description

Regarding sync and cables, please see the installation guide here.

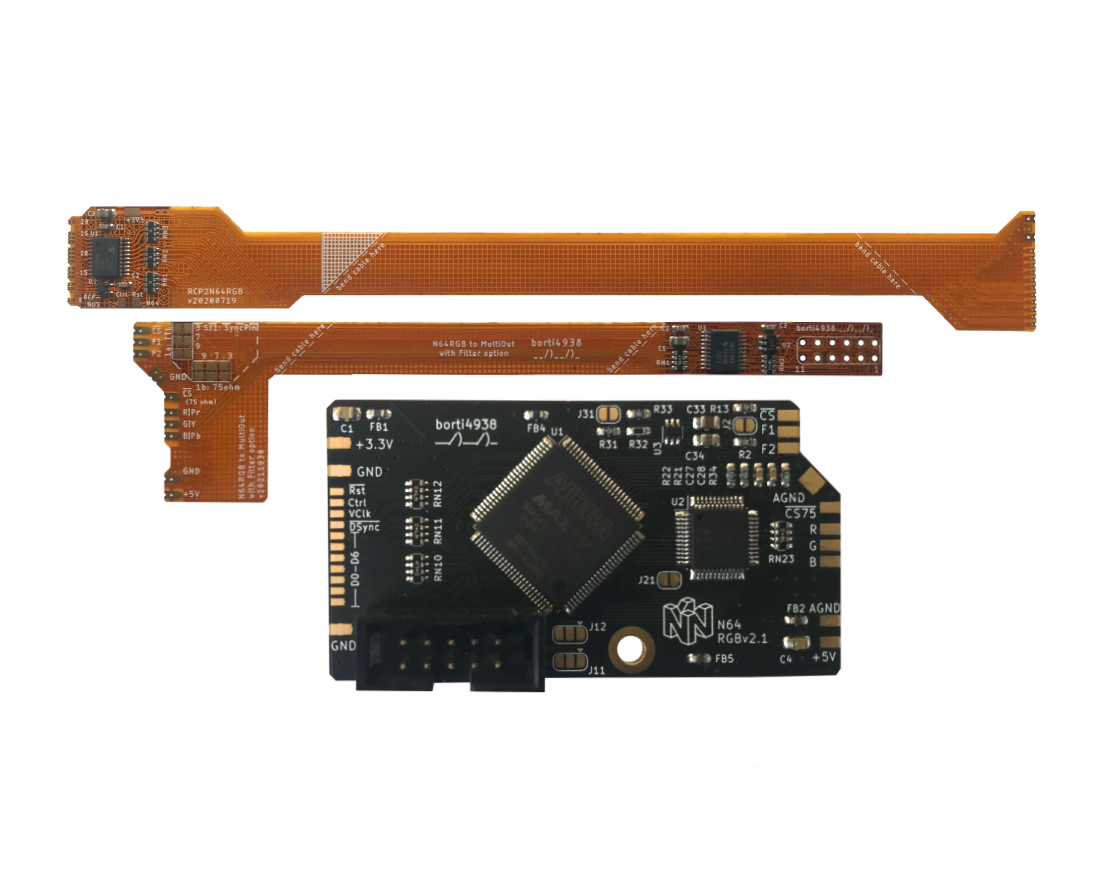

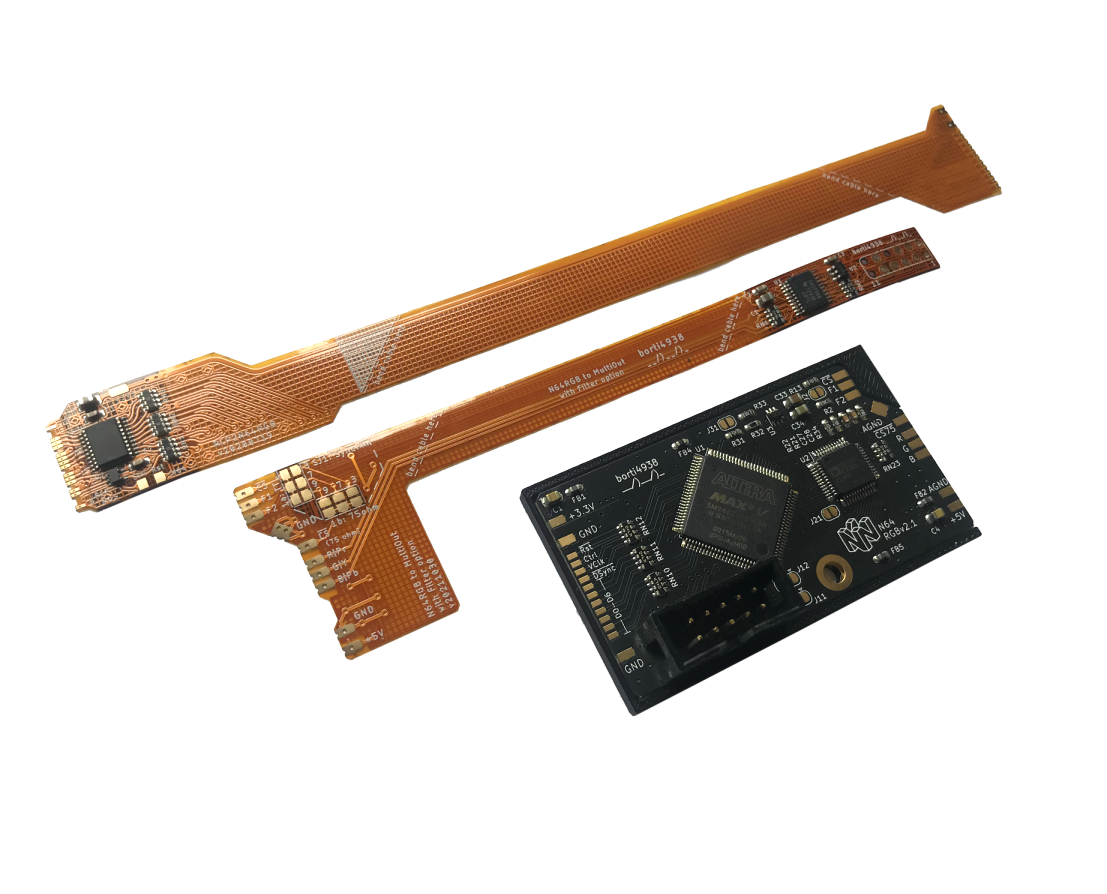

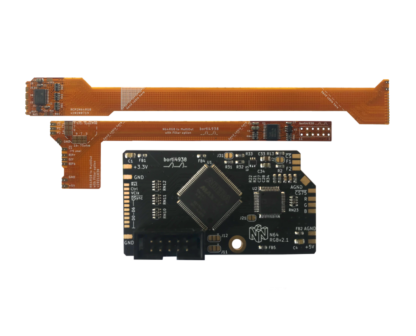

Includes: N64RGB V2.1 board, two flex cables, high temperature rated 3D printed mounting bracket and fasteners.

PAL SNES RGB SCART cables compatibility: as per the installation guide, if you wish to use PAL SCART cables, you will need to replace ‘RN2’ on the flex PCB. We stock the required part, please click here.

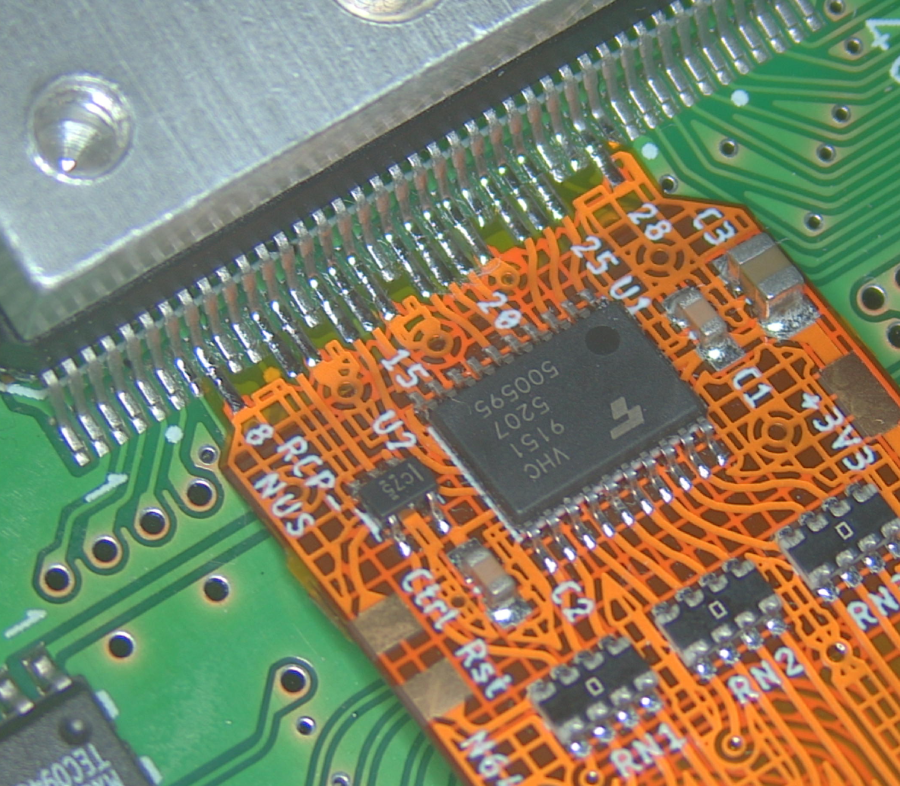

*Difficulty level is the opinion of Retro Upgrades. This kit is sold as DIY and requires fine pitch soldering skills for the flex cable to RCP-NUS chip of the N64. Please review the documentation and make sure you are confident in installing this kit prior to purchasing!
