NEC PC Engine RGB Add-On Board V2

£29.99£39.99 £24.99 excl. VAT

A simple ‘plug-n-play’ device to enable RGB output on your NEC PC Engine CoreGrafx, TurboGrafx-16 etc. Simply hook this RGB/Audio adapter board up to the ‘EXT’ port on your PC engine console with a MD/Genesis 2 cable and enjoy glorious RGB!

Features:

  • No soldering/modifications required – simple plug and play.
  • Uses the latest THS7374 amp by Texas Instruments which offers a sharper image over the previous THS7314.
  • Configured for both CSYNC & Sync on Composite.
  • Supports stereo CD audio with the latest Krikzz Turbo Everdrive PRO.
  • Professionally assembled using high-quality components from JP & USA. Brands such as Nichicon, Vishay, Panasonic.
  • Includes 3D printed expansion port support bracket.
  • Premium ENIG (gold immersion) finish.

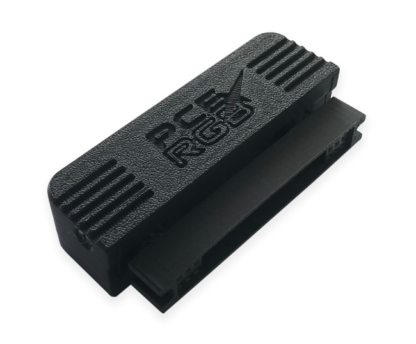

  • Optional 3D printed enclosure in multiple colour schemes selected from drop-down menu.
  • PC Engine RGB adapter V2 now released. Changes listed below.

Compatible with CRTs, OSSC, RetroTINK 5X & GBS-C scalers.

Temporarily out of stock Want to be notified when this product becomes available? Please leave your email address below.
SKU: PCE-ADP-XXX Categories: , Tags: , , , , , , , , ,

Description

28/09/2023: PCE RGB Adapter V2 Changes:

  • Stereo audio CD support integrated into design instead of previous manual hotfix.
  • CSYNC & CVBS are properly buffered for increased compatibility with monitors/scalers etc.
  • RGB lines are correctly attenuated.

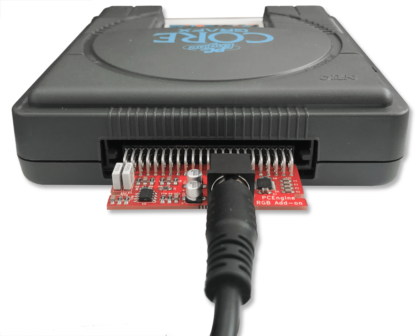

Slots into the rear extension port of any PCE CoreGrafx/TurboGrafx-16 etc:

Sync/cables: This adapter has the benefit of being able to use CSYNC & sync on composite output.

CSYNC: A standard Mega Drive 2/Genesis 2 RGB SCART cable wired for CSYNC may be used, we stock these here.
Sync on composite: HD Retrovision Genesis 2 cables are compatible and composite video is able to be used.

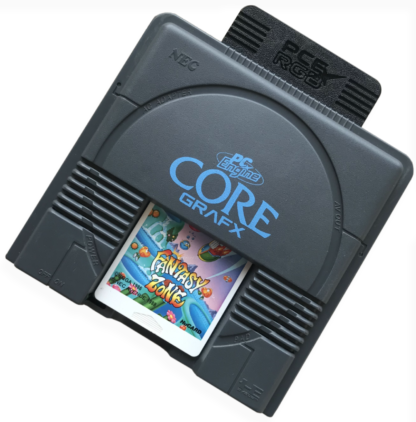

Case: the case is designed for the PC Engine Core Grafx line of consoles, we cannot guarantee it will fit other variations of the PC Engine. For TurboGrafx, we recommend using the board only version of the adapter.

Case colours: whilst we try to accurately photograph as best as possible, please bare in mind that the colours may appear slightly different depending on your monitor/display.

Case only option: Only case and fixtures are included, no adapter PCB. Only fits the PCE adapter board that we stock.

Support bracket purpose: protects the PC Engine Expansion port when using a free-hanging PCB. Assists in avoiding the connector from making bad contact or bending, insert the bracket first, and then the PCB with the connector.

Shout out to Martin Hejnfelt for the design. Save yourself from cheap and badly designed Chinese made alternatives and grab one of these today!

Additional information

Type

Board Only, With Case, Case Only

Case Colour

None, Black, Dark Grey/Light Blue, Dark Grey/Orange, White/Red
