Sega Mega Drive 2 with DFO, 50/60HZ, Switchless Region & Triple Bypass V2

£167.99£185.99 £139.99 excl. VAT

The ultimate Sega Mega Drive 2! Fully equipped with the best audio & video upgrades along with dual frequency oscillator, in-game reset via controller, 50/60hz and region switching. Ideal for pairing up with a Mega Everdrive for the ultimate Mega Drive experience!

Features:

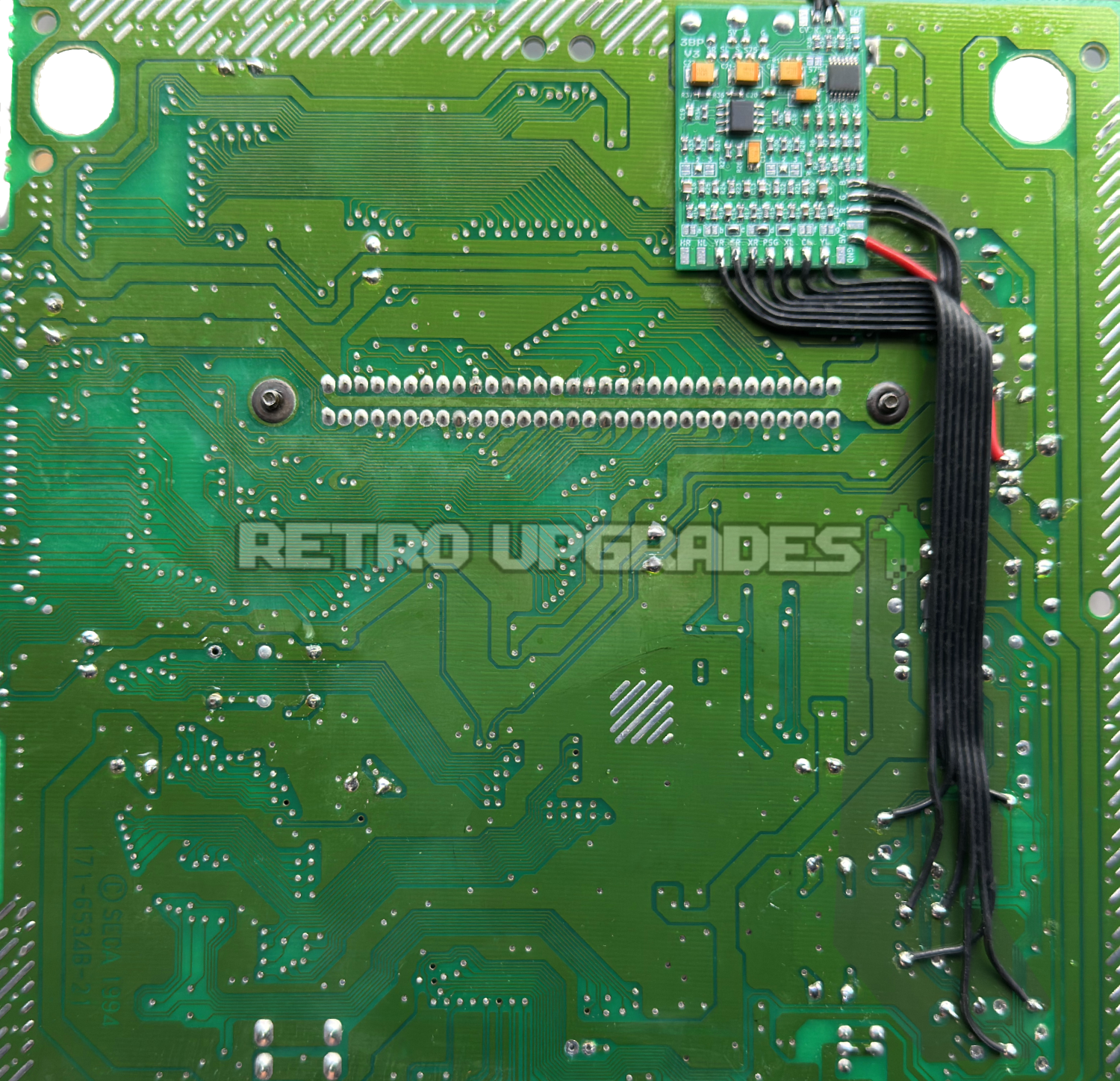

  • Sega Triple Bypass V2 kit optimizes both the audio & video for the Mega Drive. It incorporates the latest THS7374 amp and uses bypass circuitry to improve RGB signal clarity. For audio, it integrates the Mega Amp 2.0 audio amp which vastly improves the audio compared to stock systems.
  • DFO Dual frequency oscillator which corrects the base clocks for 50Hz and 60Hz video-modes. Enabling PAL consoles to be comparable to genuine 60hz consoles which is ideal for RGB users.
  • Region/language, 50/60HZ switching between PAL English 50hz, NTSC-U English 60hz and NTSC-J Japanese 60hz. Tri-color power LED displays which region is selected.
  • Composite video restored. Both RGB and composite video can be used.
  • Cleaned both internally and externally.
  • Serviced any faulty parts or out of spec components were replaced before any modifications were carried out (new AV connector).
  • Capacitors replaced with one of our high-quality Nichicon/Rubycon branded replacements.
SKU: MD-CONSOLE-2-7 Category: Tags: , , , , , ,

Description

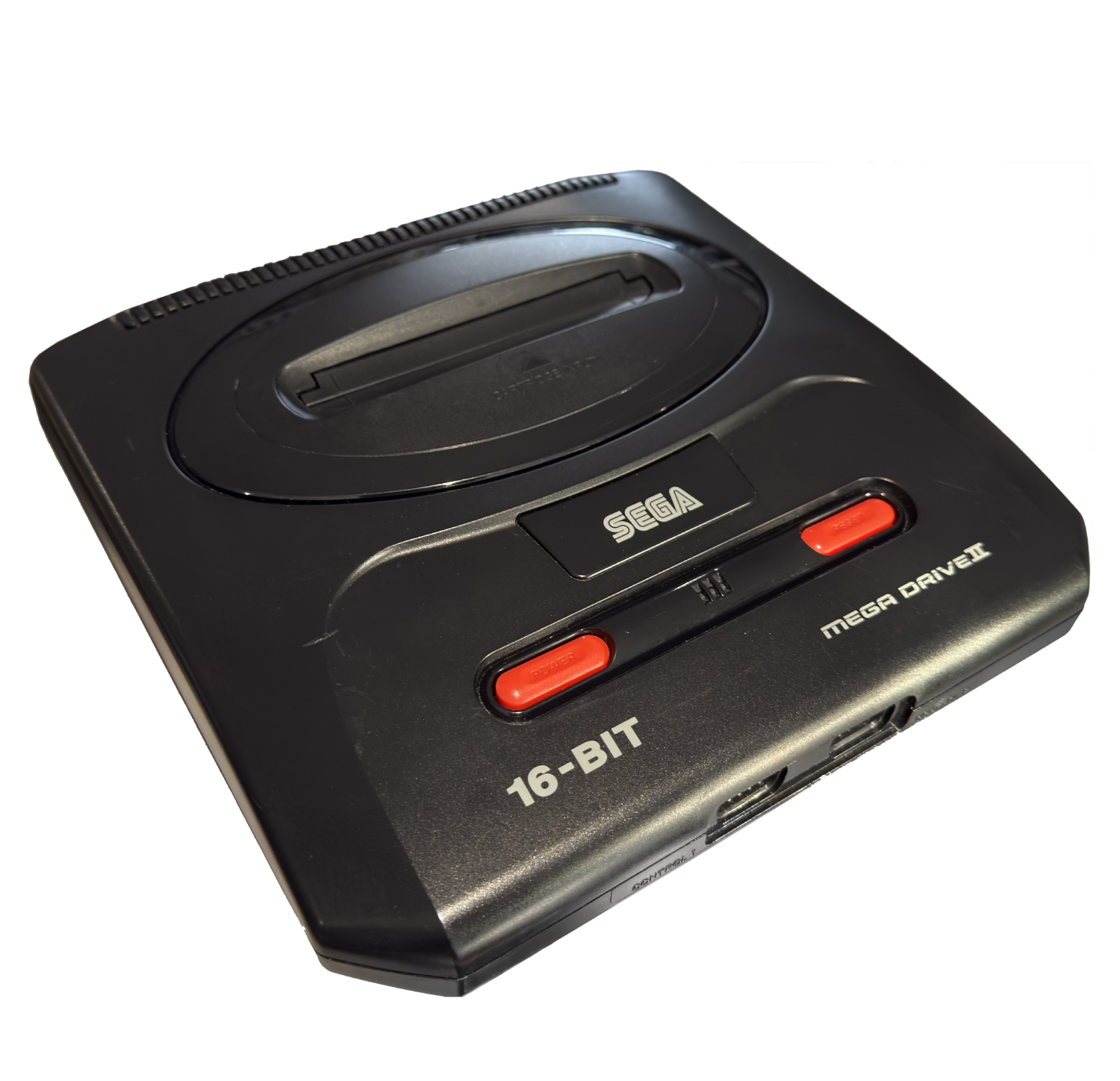

Pictures are of the actual console you will receive, minus the thumbnail which is one of our previously sold MD2’s and is our stock photo for all MD2 consoles. This console is in good condition overall with minor wear on the top shell as expected. The expansion port slot has been replaced with a 3D printed replacement as it was missing.

This listing is for only the console. No controllers or cables are included, unless you decide to purchase the console with one of our Premium MD2 RGB SCART cables from the drop-down menu.

Please note: this is a European model Mega Drive/Genesis 2 and Japanese cartridges will not fit without modification to the cartridge slot. We recommend an Everdrive by krikzz for the best experience.

The console will of course play games from all regions and is compatible with an original MD2/Genesis 2 PSU from in all regions. Alternatively, we can also supply a Triad replacement PSU which can be found on our website.

50/60hz region switching LED status:

Green (USA/NTSC-U/60hz), blue (JP/NTSC-J/60hz) & red (EU/PAL/50hz).

DFO:

Dual frequency oscillator which corrects the base clocks for 50Hz and 60Hz video-modes. Enabling PAL consoles to be comparable to genuine 60hz consoles which is ideal for RGB users. Eliminates black & white video output via composite/s-video and eliminates stutter with modern displays which are less tolerant with sync than CRT TVs.

Please feel free to email us if you have any further questions, require additional pictures or would like to enquire about other available shipping options i.e. DHL, FedEx, etc.

We offer a 12-month guarantee for this product when purchased via our website retroupgrades.co.uk

Additional information

Add RGB SCART Cable:

Yes, No
